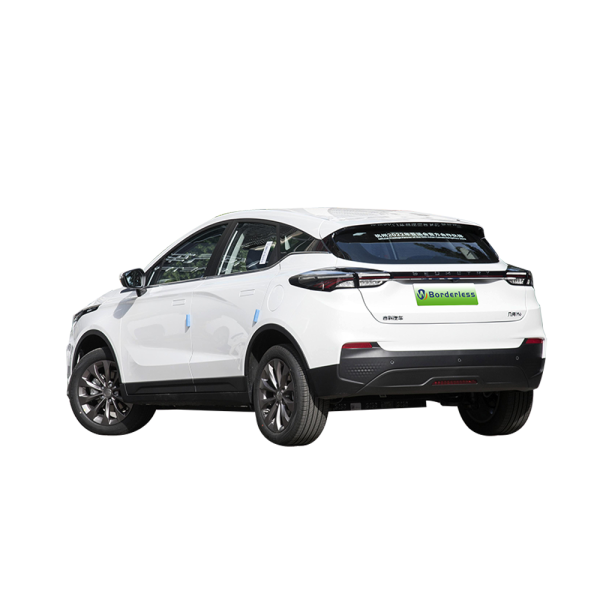

Geely Geometry M6

The Geely Geometry M6 is equipped with the smart cockpit developed based on Huawei HarmonyOS. It is powered by a 204 horsepower permanent magnet/synchronous single motor with a maximum power of 150 kW and a maximum torque of 310 Nm. The CLTC maximum cruising range can reach 580 kilometers and the 0-100 km/h acceleration time is 6.9 seconds.
  • Range450-580KM
  • Power (peak) 150KW
  • Battery capacity53-70KWH
  • Vehicle Type SUV
  • CHARGE(10-80%) 30minutes

Share

    How Can We Help You?

    Borderless customer care is here to help you anytime.

    Free Quote

    Introduction

    1. The body dimensions of the Geometry M6 are 4432/1833/1560 millimeters in length, width and height respectively, with a wheelbase of 2700 millimeters.
    2. The front face of the Geometry M6 adopts a closed intake grille design, a coupe-style design + suspended roof, and the central control panel adopts a layout form of a 10.2-inch LCD instrument panel, a 14.6-inch central control screen design, and a HUD multi-screen combination.
    3. The Geometry M6 is equipped with an electric vehicle single-speed gearbox and a Ningde era ternary lithium battery that supports fast charging. It provides two power battery capacities, 53 kWh and 70 kWh, with NEDC ranges of 450 kilometers and 580 kilometers, respectively.
    4. The Geometry M6 is fully equipped with L2 level assisted driving, and also has functions such as lane changing assistance, automatic parking, etc. The entire series is equipped with an intelligent cockpit system developed based on the Harmony OS system.

    Highlighted Features

    1. The battery of the Geometry M6 not only has intelligent temperature control, active power cut-off, active monitoring, active diagnosis and other functions, but also is managed by the SEM intelligent energy management system 2.0 to ensure that the battery is always in the best condition and create a true range safety.
    2. The SEM intelligent energy management system installed in the Geometry M6 achieves ultra-low energy consumption, high-precision energy control, and high-efficiency energy recovery through five dimensions of energy storage, energy saving, energy recovery, energy control, and energy lift, with the algorithm as the core.
    3. The Geometry M6 is equipped with the Onebox braking energy recovery system, which achieves an energy recovery rate close to 100%, realizing ultra-low energy consumption, high-precision energy control, and efficient energy recovery.
    4. The Geometry M6 is also fully equipped with L2 level assisted driving functions, including ACC adaptive cruise control, LKA lane keeping, TSI intelligent traffic sign recognition, 540° AR panoramic imaging, APA automatic parking and other functions.

    Parameters

    Basic
    Level Compact Sedan
    Energy Type Electric
    Sale Time 2022-11-07
    Manufacturer Geometric
    Cltc Range [Km] 620
    Country Of Origin China
    Size
    Body Structure 4-Door 5-Seat Sedan
    Curb Weight [Kg] 1610
    Length*Width*Height [Mm] 4752*1804*1503
    Wheelbase [Mm] 2700
    Front Tire Specification 215/50 R17
    Rear Tire Specification 215/50 R17
    Power
    Motor Type Permanent Magnet Synchronous
    Motor Max Power (Kw) 150
    Motor Total Torque [N·M] 310
    Battery Capacity [Kwh] 70
    Official 0-100Km/H Acceleration [s] 6.9
    Drive Form FF



    Battery
    Battery Type Ternary Lithium Battery
    Battery Brand CATL
    DC Charging Time [Min] 38
    AC Charge Time[H] 11
    Power Consumption[Kwh/100Km] 12.5



    FAQ

    Does the Geometry M6 support fast charging?

    Yes, it supports fast charging and provides two power battery capacities, 53 kWh and 70 kWh, with NEDC ranges of 450 kilometers and 580 kilometers, respectively.

    What is the safety configuration of the Geometry M6?

    The Geometry M6 is equipped with ACC active safety configuration, including ACC adaptive cruise control, AEB automatic emergency braking system, LDW lane departure warning system, etc. The SEM 2.0 super energy management master installed in the vehicle will monitor the entire vehicle 24/7, accurately monitor temperature differences of single cells, and adopt a double-loop FPC hardware overheat detection scheme, combined with cell voltage, temperature, and other parameters, to ensure timely and reliable safety diagnosis.

    How is the battery safety of the Geometry M6?

    The Geometry M6 adopts a high-density and high-quality ternary lithium battery pack with an energy density of up to 183.23 Wh/kg. The battery attenuation after 50,000 km is less than 10%. At the same time, all 102 battery modules use an aluminum plate liquid cooling system, which can adapt to an ambient temperature difference of 80℃, and the temperature difference of a single cell is controlled within 2℃, which can effectively reduce the impact of external temperature on the battery and improve safety.
